Single Phase SSRs by Unison
Single Phase SSRs

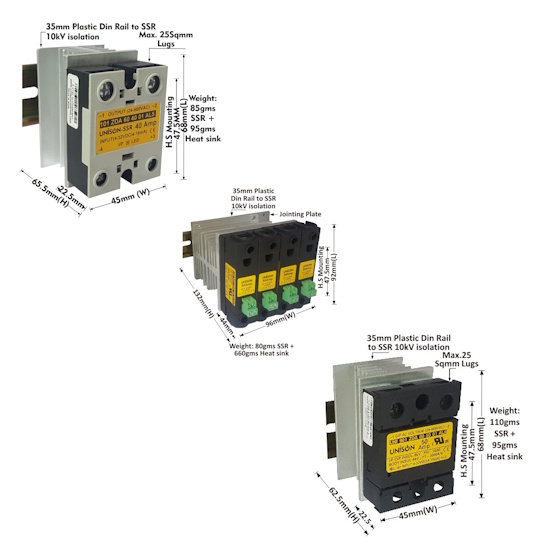

Single Phase DC to AC SSR
Specifications
Input: 3 to 32VDC, 4 to 16mA
Output: 24VAC to 600VAC,
PIV: 800 or1600Vpk, Zero Cross over
Product Temp. Withstand Capacity: 150 Degree C
Body Isolation:3kV to 6kV for 1Min.
I/p to O/P Isolation: 2.5kV to 8kV for 1Min
Short Circuit Protection By “B-Curve MCB”
Short Circuit Current Rating: 10kA for less than 3mS

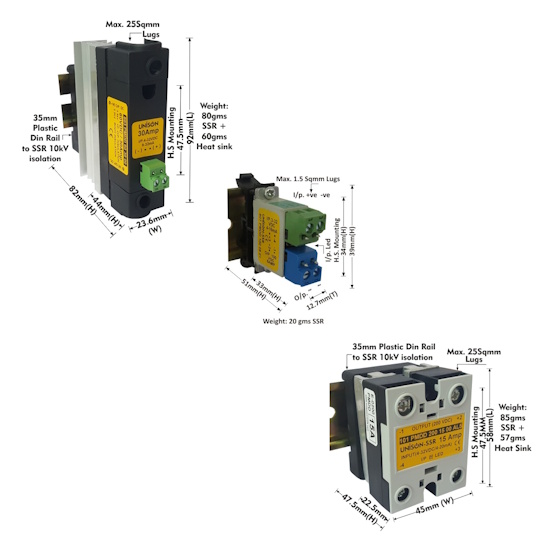

DC to DC SSR
Specifications

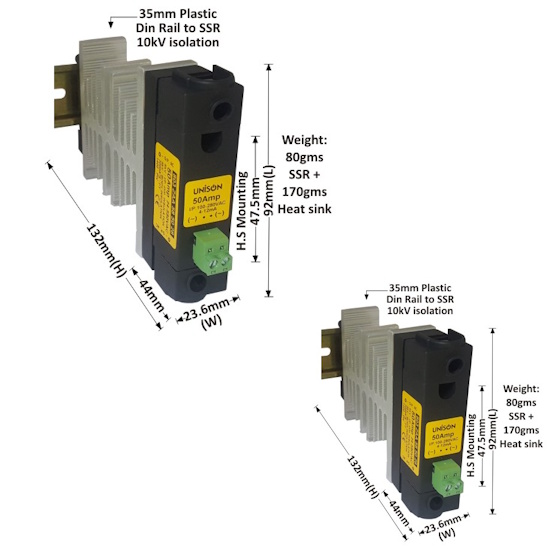

Single Phase AC to AC SSR
Specifications
Input: 3 to 32VDC, 4 to 45mA
Output: 24VAC to 580VAC,
PIV: 800 or 1600Vpk,Zero Cross over
Product Temp. Withstand Capacity: 150 Degree C
Body Isolation: 4kV for 1Min.
I/p to O/P Isolation: 6kV for 1Min
Short Circuit Protection By “B-Curve MCB”
Short Circuit Current Rating: 10kA for less than 3mS
Available Amp Range : 2.5A to 200A
Other SSRs by Unison
Other SSRs

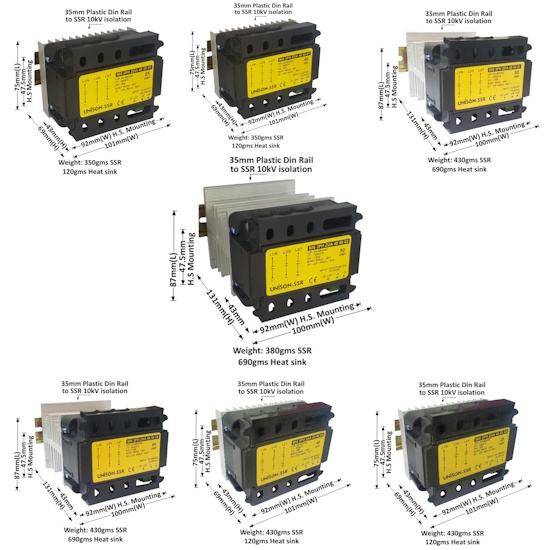

Three Phase SSR
Specifications
Input: 3 to 32VDC, 15 to 40mA / 80 to 280VAC
Output: 24VAC to 480VAC (47 to 63Hz)
PIV:800 or 1200Vpk, Zero Cross over
Body Isolation: 4kV for 1Min.
I/P to O/P Isolation: 6kV for 1Min
Short Circuit Protection By “B-Curve MCB”
Short Circuit Current Rating: 10kA for less than 3mS
Available Amp Range : 25A to 90A

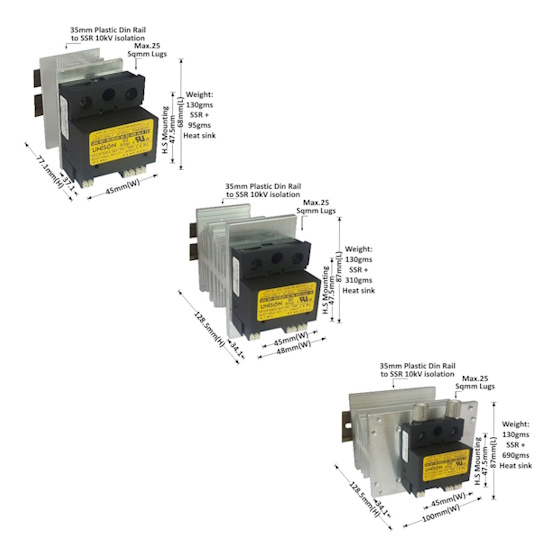

Burst Fire Control SSR
Specifications
Input: 4 to 20mA/ 0 to 10VDC, 24VDC Aux. Supply
Output: 90VAC to 600VAC
PIV:1600Vpk, Zero Cross over
Body Isolation: 6kV for 1Min.
I/P to O/P Isolation: 6kV for 1Min
Short Circuit Current Rating: 10kA for less than 3mS
Available Amp Range : 50A to 200A

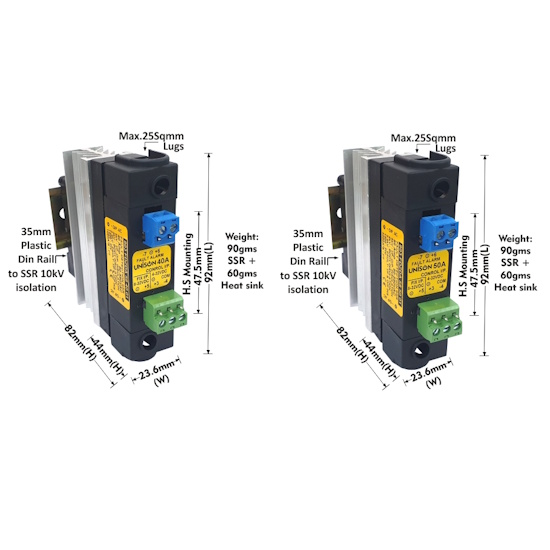

Fault Detection SSR
Specifications
Input: 4 to 32VDC / 6-16mA
Fix Supply:8 to 32VDC / 4 to 30mA
O/P Fault Alarm with RED LED Indication
Output: 110VAC to 600VAC
PIV:1600Vpk, Zero Cross over
Body Isolation: 4kV for 1Min.
I/P to O/P Isolation:4kV for 1Min
Short Circuit Protection By “B-Curve” MCB
Short Circuit Current Rating: 10kA for less than 3mS
Available Amp Range: 50A to 200A

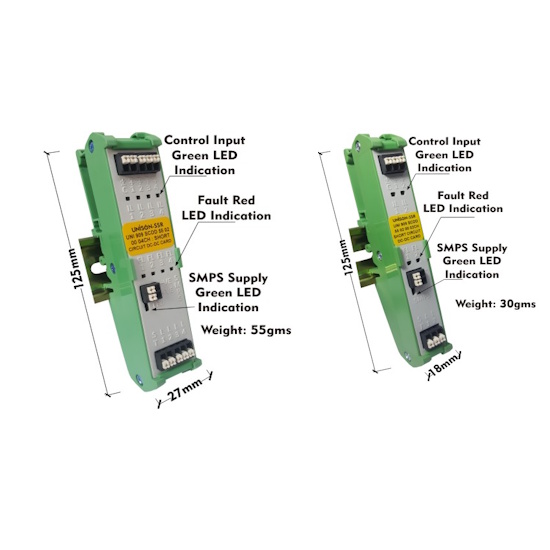

DC to DC Short Circuit Protection Card
Specifications
Input: 3 to 32VDC/1-7mA
Input is Polarity Free
Fix Supply: 8 to 32VDC / 4 to 30mA
O/P Fault Alarm with RED LED Indication
No need of External Fuse
Auto-resettable is problem is solved
No. of Channels: 2Ch, 4Ch, 8Ch.
Available Amp Range : 2A and 4A
Heat Sinks by Unison
Heat Sinks

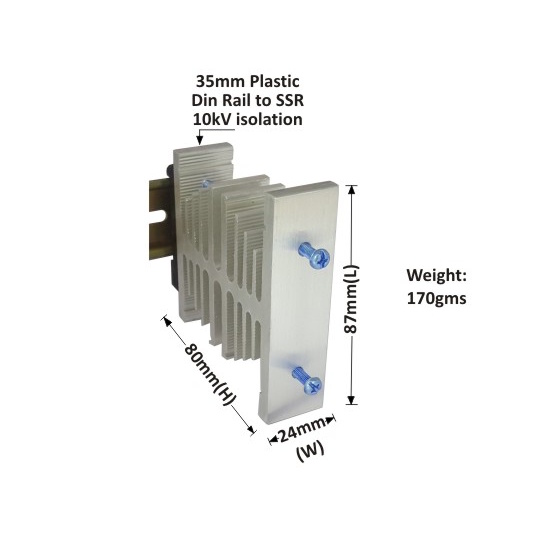

B-24
Suitable for: 803 SSR (1 Nos.)
Current upto 30 Amp @ 40°C
with DIN Rail 22.5mm
2630mm² X 24mm = 63120 mm³
24mm(W) X 87mm(L) X 80mm(H) + SSR
Weight: @ 170gms
B-48
Suitable for: 803 SSR (1 Nos.)
Current upto 30 Amp @ 40°C
with DIN Rail 22.5mm
248mm² X 87mm = 21576 mm³
24mm(W) X 87mm(L) X 30mm(H) + SSR
Weight: @ 60gms

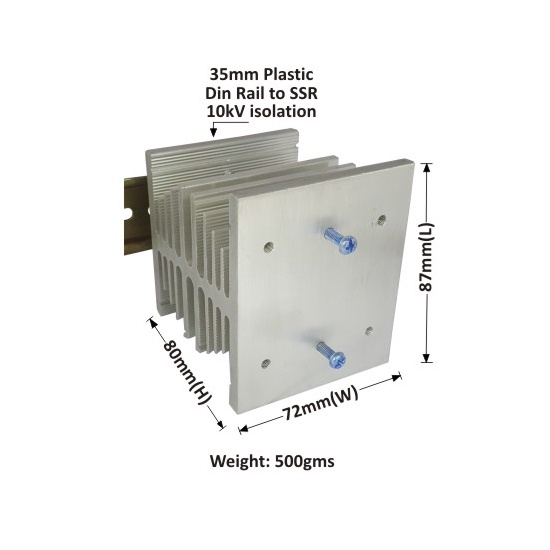

B-72
Suitable for: 803 SSR (3 Nos.) / 901 SSR (1 Nos.)
Current upto 60 Amp @ 40°C
with DIN Rail 42mm
2630mm² X 72mm = 189360 mm³
72mm(W) X 87mm(L) X 80mm(H) + SSR
Weight: @ 500gms

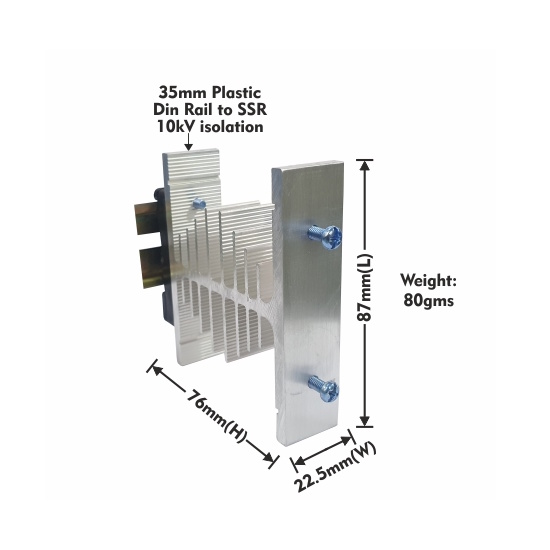

T-22.5
Suitable for: 803 SSR (1 Nos.)
Current upto 30 Amp @ 40°C
with DIN Rail 22.5mm
2630mm² X 22.5mm = 59175 mm³
22.5mm(W) X 87mm(L) X 76mm(H) + SSR
Weight: @ 80gms

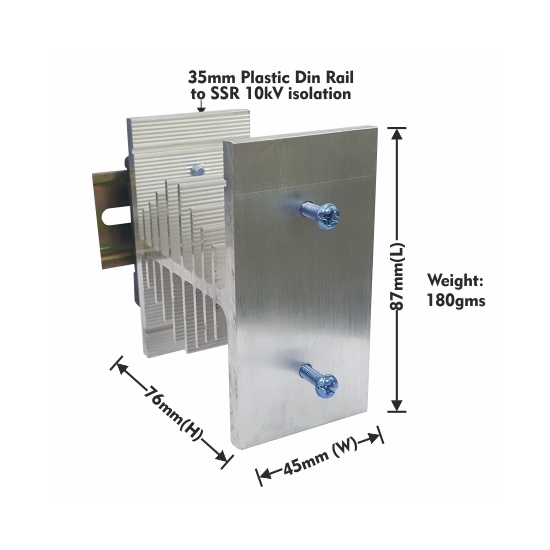

T-45
Suitable for: 101 / 803 / 901 SSR (1 Nos.)
Current upto 34 Amp @ 40°C
with DIN Rail 42mm
2630mm² X 45mm = 118350 mm³
45mm(W) X 87mm(L) X 76mm(H) + SSR
Weight: @ 180gms

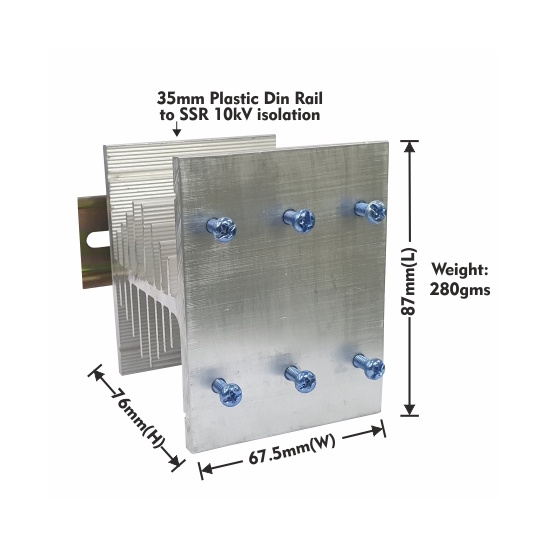

T-67.5
Suitable for: 803 SSR (3 Nos.) / 901 SSR (1 Nos.)
Current upto 54 Amp @ 40°C
with DIN Rail 42mm
2630mm² X 67.5mm = 177525 mm³
67.5mm(W) X 87mm(L) X 76mm(H) + SSR
Weight: @ 280gms

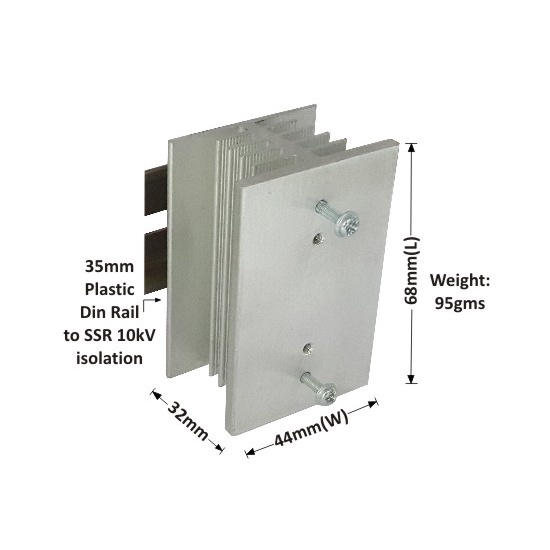

G-68
Suitable for: 101 / 102 / 108 / 901 SSR (1 Nos.)
Current upto 26 Amp @ 40°C
with DIN Rail 22.5mm
491 mm² X 68mm = 33388 mm³
44mm(W) X 68mm(L) X 32mm(H) + SSR
Weight: @ 95gms

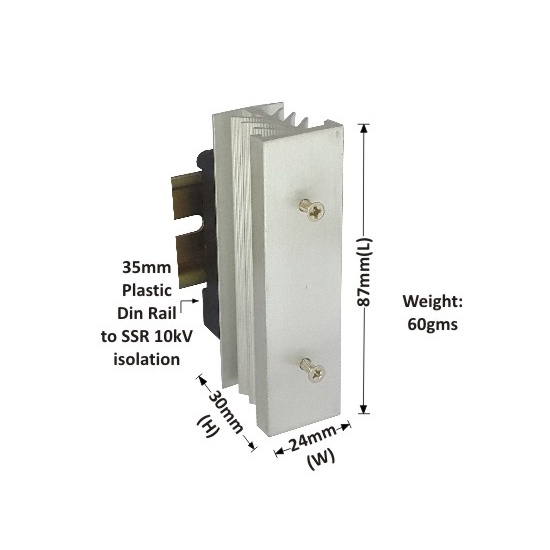

V-87
Suitable for: 803 SSR (1 Nos.)
Current upto 22 Amp @ 40°C
with DIN Rail 22.5mm
248mm² X 87mm = 21576 mm³
24mm(W) X 87mm(L) X 30mm(H) + SSR
Weight: @ 60gms
