Sensors by Leuze
Sensors

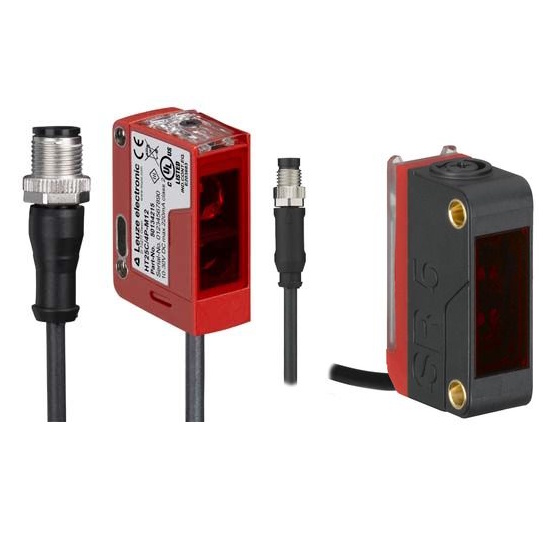

Background Suppression Sensors
Specifications
Supply: 10 to 30VDC
Sensing Range: 5mm to 1200mm
Light Source: IR/Red LED/LASER
Connection Type: Pre-Wired / Connector
Output: PNP/NPN/Push-Pull/Relay
Logic: NO/NC/NO+NC
Specialty : Object is Detected on Same Distance Irrespective of its Colour

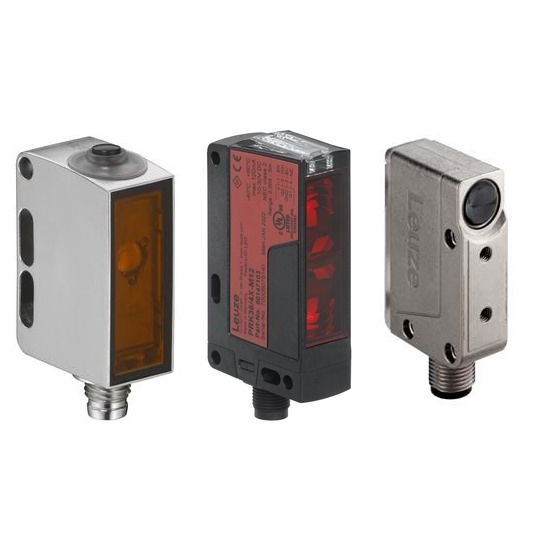

Polarized Retro-Reflective Sensors
Specifications
Supply: 10 to 30VDC
Sensing Range: 0mm to 40000mm
Light Source: IR/Red LED/LASER
Connection Type: Pre-Wired / Connector
Output: PNP/NPN/Push-Pull/Relay
Logic: NO/NC/NO+NC
Specialty: Used to detect Transparent Glass Bottles

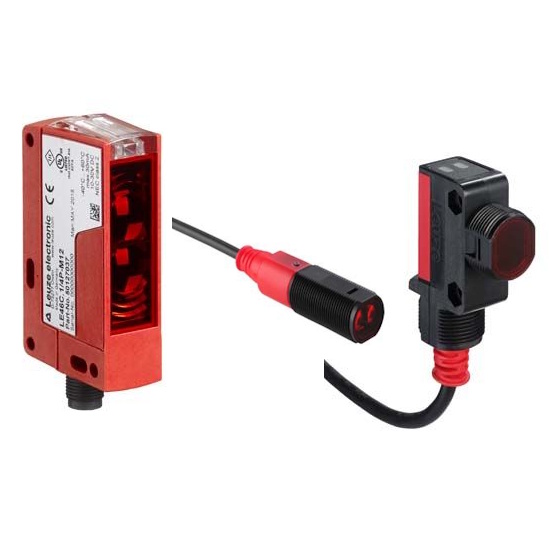

Through Beam Sensors
Specifications
Supply: 10 to 30VDC
Sensing Range: 0mm to 40000mm
Light Source: IR/Red LED/LASER
Connection Type: Pre-Wired / Connector
Output: PNP/NPN/Push-Pull/Relay
Logic: NO/NC/NO+NC
Specialty: Used to detect Long Distance Objects

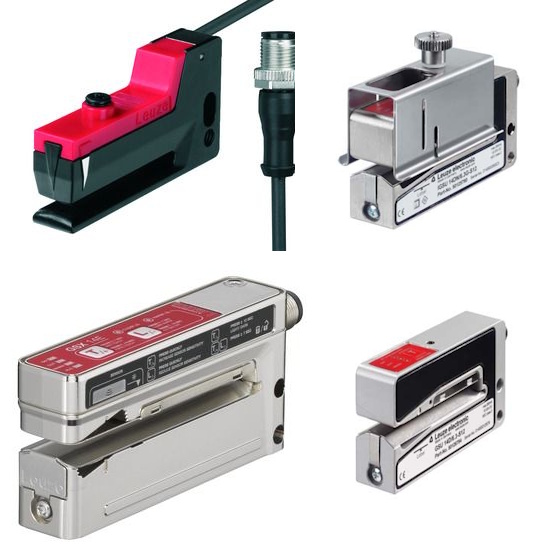

Label Sensors
Specifications
Supply: 10 to 30VDC
Fork Width: 1mm to 4mm
Principle: IR/Ultrasonic/Capacitive
Connection Type: Connector
Output: PNP/NPN/Push-Pull
Logic: NO/NC/NO+NC
Specialty : Used to detect Transparent Labels

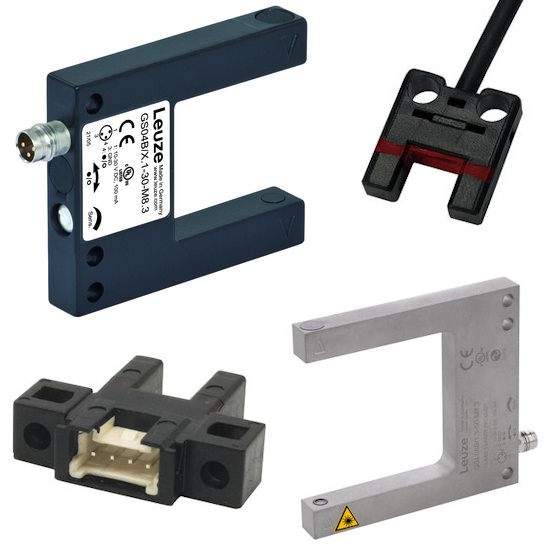

Fork Sensors
Specifications
Supply: 10 to 30VDC
Fork Width: 5mm to 220mm
Principle: IR/Red LED/Laser
Connection Type: Connector
Output: PNP/NPN/Push-Pull
Logic: NO/NC/NO+NC

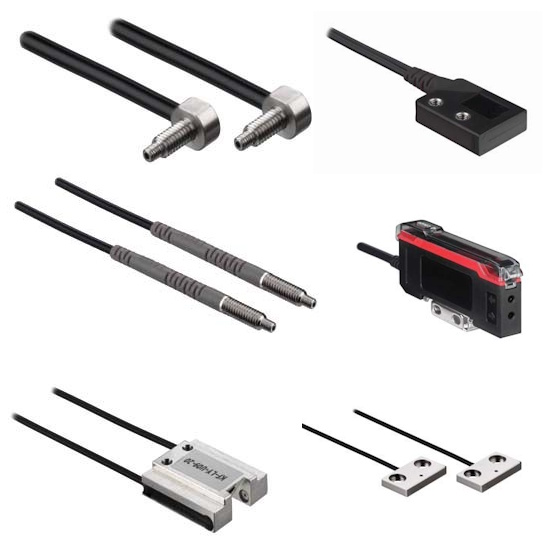

Fiber Optic Sensors
Specifications
Supply: 10 to 30VDC
Fiber Head Size: 3mm, 4mm, 6mm, Array Type
Light Source: IR/Red LED/Laser
Operating Principle: Diffuse/Through Beam
Connection Type: Pre-wire/Connector
Output: PNP/NPN/Push-Pull
Logic: NO/NC/NO+NC

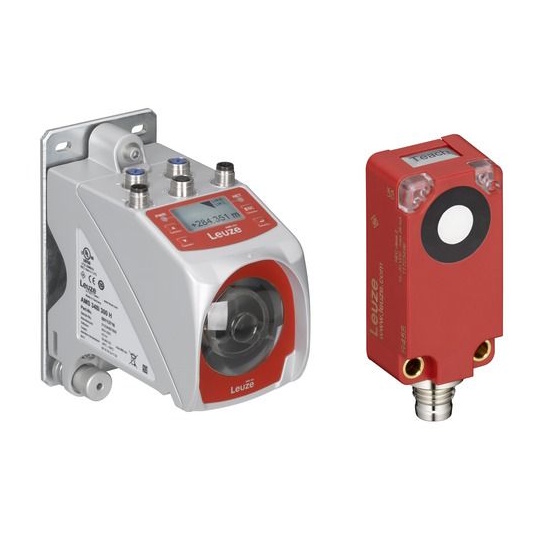

Distance Sensors
Specifications
Supply: 10 to 30VDC
Sensing Distance: 45mm to 300000mm
Principle: Laser/Ultrasonic
Housing Material: Plastic/Metal
Output: 4 to 20mA/ 0 to 10VDC
Connection: Connector
Interface: CAN Open/Ethernet/Profinet

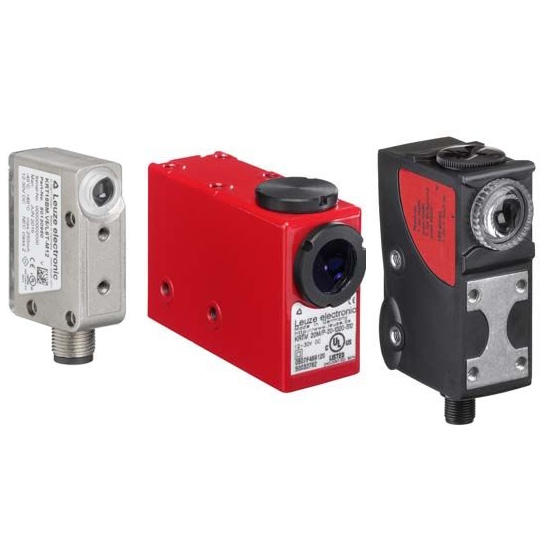

Contrast Sensors
Specifications
Supply: 10 to 30VDC
Light Source:White Light/Red LED/Laser
Sensing Distance:9mm to 60mm
Connection Type: Connector
Output: PNP/NPN/Push-Pull/Analogue
Logic: NO/NC/NO+NC
Switching Frequency: 4KHz to 50KHz

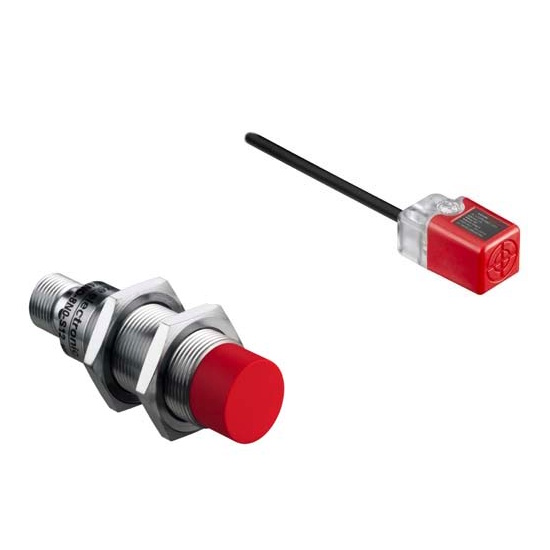

Inductive Proximity Sensors
Specifications
Supply: 10 to 30VDC(3 Wire Sensor) or 20 to 270VAC(2 Wire Sensor)
Sensing Range: 0.8mm to 50mm
Sizes:M3, M4, M5, M6.5, M8, M12, M18, M30
Connection Type: Pre-Wired/Connector
Output: PNP/NPN/PNP+NPN
Logic: NO/NC/NO+NC
Safety Products by Leuze
Safety Products

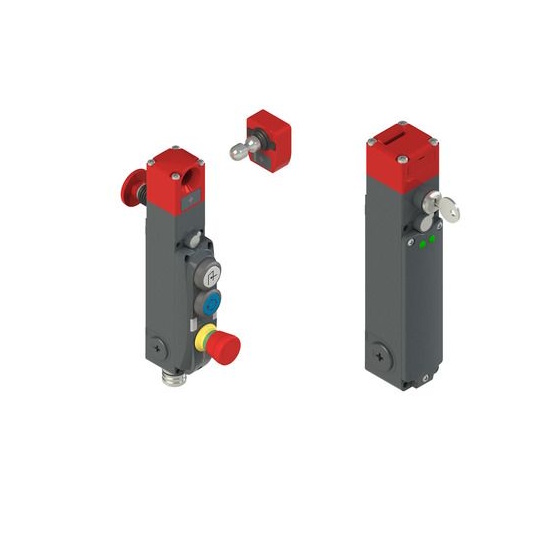

Safety Interlocks
Specifications
Contact Allocation: 1NC+1NO/2NC/2NC+1NO/3NC
Type: Power to Lock/Power to Unlock
Pulse: 24VDC/110VAC/230VAC
Connection: Connector/Terminal
Latching Force: 1100N to 9750N
Mousing Material: Thermo-grade Plastic/Metal
Actuator Type: Straight/L-Type/Flexible

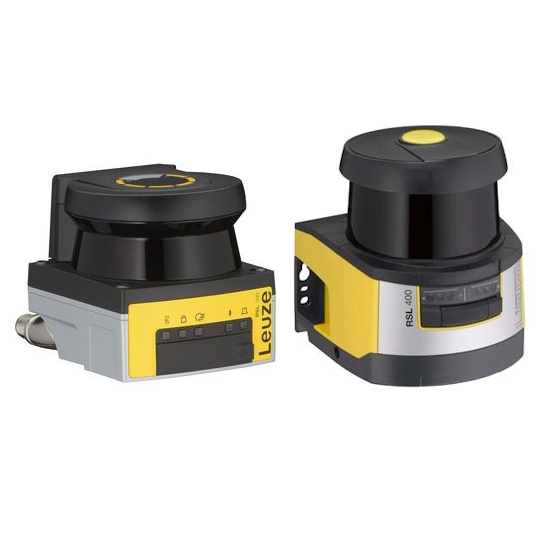

Safety Laser Scanners
Specifications
Operating Range: 3000mm to 8250mm
Number of fields Triples: 1 to 32
Number of field Pairs: 1 to 100
Number of OSSDs: 2 to 4
Connection: Cable or Connector
Interface: I/O/PROFISafe/PROFINET
Scanning Angle: 270Degree

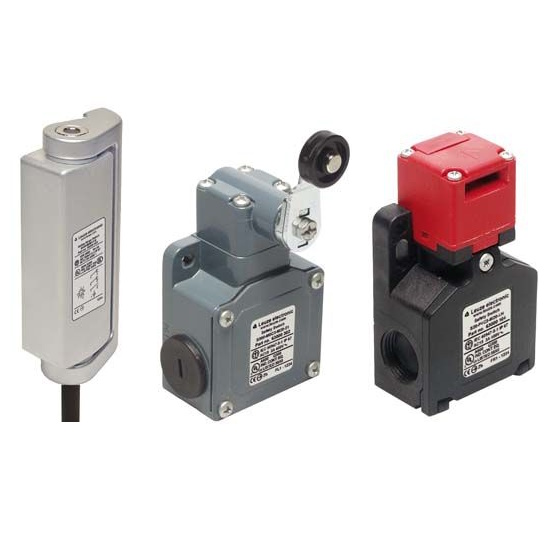

Safety Door Switches
Specifications
Contact Allocation: 1NC+1NO/2NC/2NC+1NO/3NC
Connection: Connector/Terminal
Mousing Material: Thermo-grade Plastic/Metal
Actuator Type: Straight/L-Type/Flexible

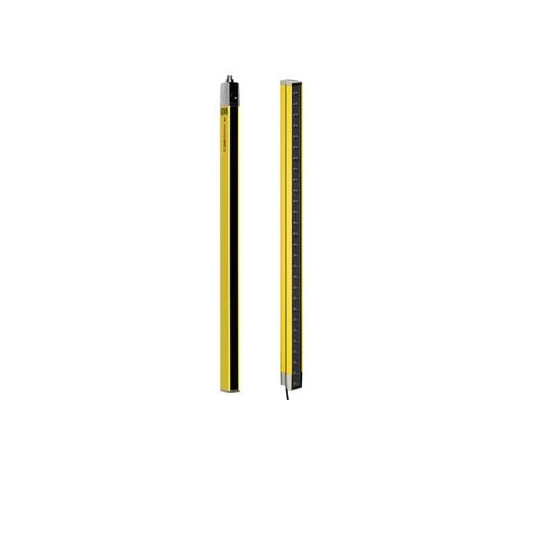

Safety Light Curtains
Specifications
Protective Field Height: 300mm to 1500mm
Resolution: 17mm to 30mm
Operating Range: 3000mm to 6000mm
Protection: Type 4
Output: 2 X PNP-NC (OSSDs)

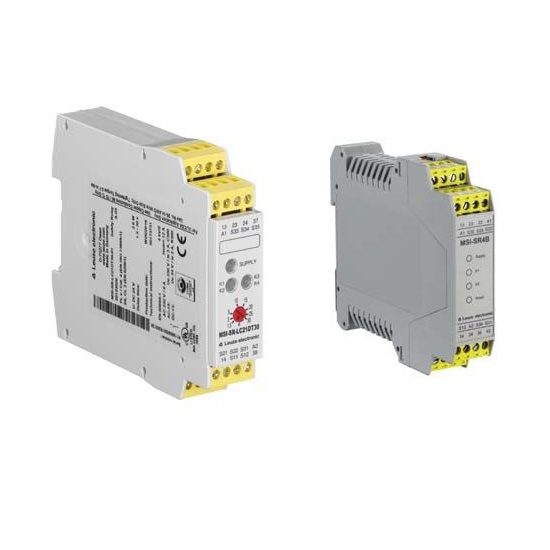

Safety Relays/PLCs
Specifications
Type: Fieldbus Gateway/Non-Safe I/O module/Safe I/O Module/Safe Input Module/SafetyControl
Number of Inputs: 4 to 16
Number of Outputs:4
Interface: CANopen/EtherCAT/Ethernet/Profibus DP

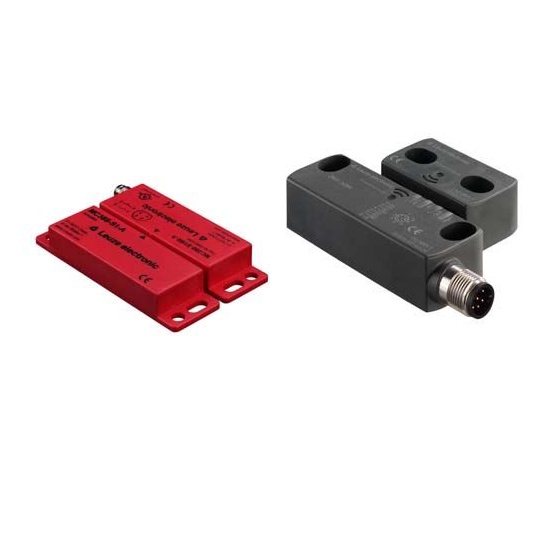

Safety Proximity Switches
Specifications
RF ID / Magnetic
Code Type: Flexible Programming/Standard Code/Unique Core
Connection: Pre-wired or Connector
Contact Allocation: 1NC+1NO/2NC/2NC+1NO/3NC
Other Products by Leuze
Other Products

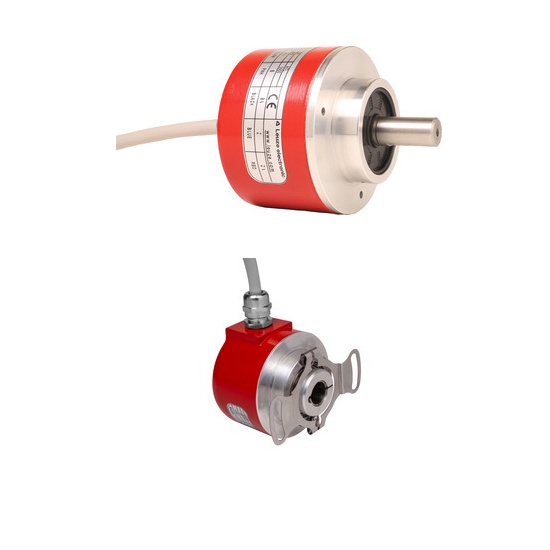

Encoders
Specifications
Rotary Optical Encoder/Incremental Encoder
Type: Shaft/Hollow Shaft
OD: 58mm
Shaft Diameter: 8mm or 10mm
Shaft Length: 20mm
Resolution: 5000p/r
Max. Operating Speed: 6000 r/min
Supply: 5 to 30VDC
Switching Frequency: 300000Hz
Interface: HTL/TTL

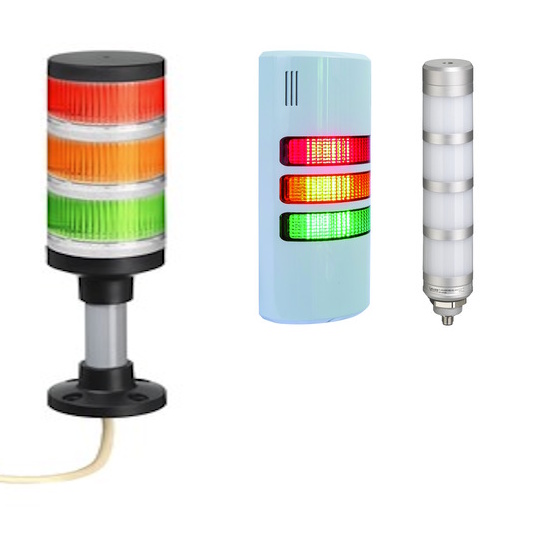

Signal Tower Lamps
Specifications
Supply Voltage: 12VDC/24VDC/110VAC/230VAC
Stack: 1, 2, 3, 4, 5
Colour: Red, Amber, Green, White, Blue
